Fiber Optic Cables

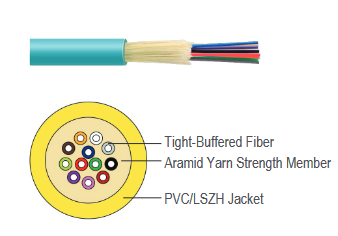

Tight-Buffered Distribution Cables
Features & Benefits
2-48 Fiber Count (Other fiber counts are available)
900μm Tight Buffered Construction
LSZH, PVC, Plenum OFNP, Riser OFNR Jacket Options
RoHS Compliant
Applications
FTTX Networks
Riser/Backbone/Data Center Cabling
Standards Environmental Characteristics
ITU.T G.652.D, G.657.A, G.657.B, G.651.1 Installation -10° to +50°C
ANSI/TIA-568-C.3, ISO/IEC 11801 Operation -20° to +60°C
IEC 60793, IEC 60794 Transport and Storage -20° to +60°C
IEC 60332-1-2, IEC 60754-1,2 & IEC 61034-2
Mechanical Specifications
Cable Bending Radius Min. Bend Radius (Dynamic) 20D
Min. Bend Radius (Static) 10D
Crush Resistance Long Term 300
Short Term 100
Fiber Characteristics
Cable Type Singlemode (G.652.D) OM1 OM2 OM3 OM4
Wavelength (nm) 1310 1550 850 1300 850 1300 850 1300 850 1300
Attenuation (dB/km) ≤0.4 ≤0.3 ≤3.0 ≤1.0 ≤3.0 ≤1.0 ≤3.0 ≤1.0 ≤3.0 ≤1.0
Physical Specifications
Fiber Count Weight (Kg/km) Tensile Strength (N) Overall Diameter (mm)
Long Term Short Term
