Dimensions
4U
481
443
168
276
Shelf Unit Height
Width (w/ mounting brackets)
Width (w/o mounting brackets)
Height
Depth
19”Chasis Size
Fiber Management Shelves
4
Fiber Management Shelves are used to terminate and distribute optical fiber cables, termination box is ranging from 12 ports to 96
ports. They are convenient equipment to organize and connect the fiber optic links. It is suitable for the use in telecommunication
network, central office optical cable system and premise fiber networks.
Typical type of our fiber panels are rack mounted, they are with optional different kinds of fiber optic adapters ports and pre-installed inner trays and accessories, optional pigtails with different types.
19” PP/SP 4U Fiber Management Shelves
Features
Clean: Both sides easily accessible for cleaning adapters
Safe: Laser light oriented perpendicularly to the operator
Accessible: Full front access at both sides of connection
Visible: Patch cords do not hamper access or visibility of ports
Easy reconnection within tray or shelf without uncontrolled overlengths
Manipulation of patch cords does not cause fiber loss
Connectors in trays are more secured than in front facing patch panels
Shelves are painted (powder-coated) in light grey (RAL 7035)
SC-APC SC-UPC SC-OM2 SC-OM3 SC-OM4 LC-APC LC-UPC LC-OM2 LC-OM3 LC-OM4 E2000-APC E2000-UPC

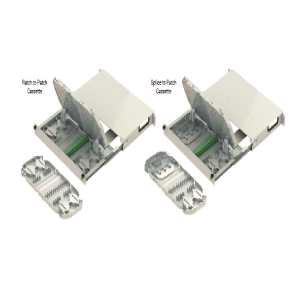

Patch to Patch
Cassette
Splice to Patch
Cassette
